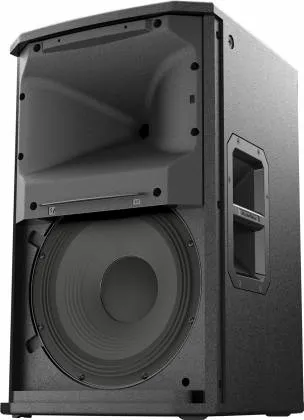

Built from the ground up for the true audio professional. Whether you are doing rental and staging, DJ, mobile production or just need a wicked pair of speakers the ETX series is for you! The ETX-12P was designed by the team at EV and features a 12" horn and a 1.25" compression driver (titanium) inside its fully wooden birch enclosure.
EV’s FIR-Drive utilizes the latest Finite Impulse Response (FIR) filter technology to optimize transducer linearity. Advanced limiter algorithms for independent peak and thermal transducer protection.
Designed, engineered and tested for ultimate reliability by Electro-Voice in the USA.
EVs brand new DSP is host to many great features including:
- Boundary compensation filters (use as wedge, flown or pole mounted)
- Delay to several hundred feet
- Three-band parametric EQ
- Polarity invert
- Multiple high-pass crossover points
- Lockout mode to prevent tampering
Features
- 12-inch LF SMX woofer
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 135 dB peak SPL
Specifications
| Frequency Range | 43 Hz – 20 kHz |
| Maximum SPL | 135 peak dB |
| Power Consumption | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
| Power Rating | 2000 W |
| Frequency Response | 55 Hz – 20 kHz |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| LF Transducer | SMX2120 300 mm (12 in) |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Crossover Frequency | 1600 Hz |
| Connector Type | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Grill | 16AWG steel with powdercoat |

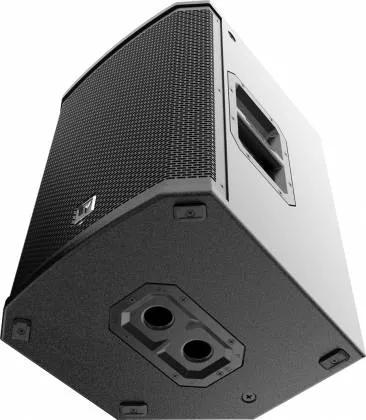

| Suspension | (8) M10 suspension points |
| Height | 613 mm (24.13") |
| Width | 381 mm (15") |
| Depth | 400 mm (15.75") |
| Weight Net | 23.6 kg (52.03 lbs) |
| Shipping Weight | 26.8 kg (59.08 lbs) |
