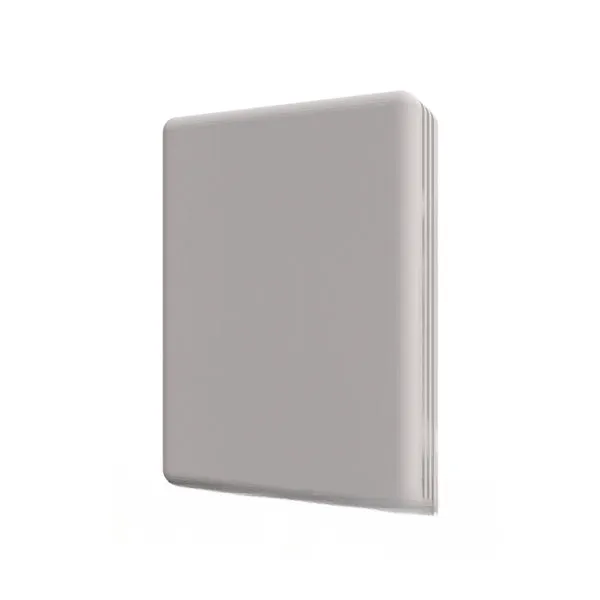

Name: INTESIS Fujitsu RAC and VRF systems
SKU: 166662

Fujitsu RAC and VRF systems to AC Cloud Control (WiFi) Interface (to remote controller) - 1 unit

This model allows you to control your AC unit from the AC Cloud app and also integrates with

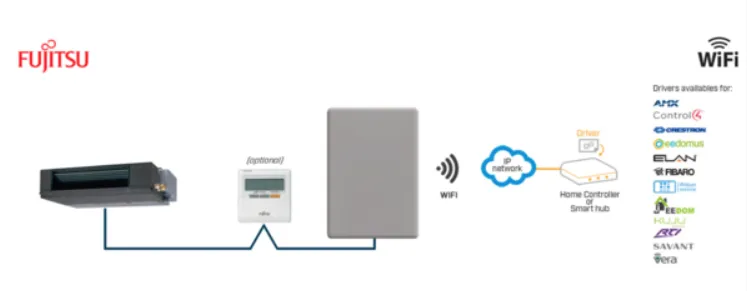

The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint, but the monitoring of errors and alarms.

AC Cloud Control devices are developed to interface the AC units and provide cloud connectivity using the local WIFI network. They are b/g/n compatible and use 2.4GHz frequency, ensuring further coverage within the installation, and showing no communication problems due to the optimized IoT communication protocol used. They are firewall friendly since only outbound ports are used, ensuring an easy and secure configuration.

FEATURES

Easy WiFi configuration using the native Android and iOS app.
b/g/n WiFi standards supported at 2,4 GHz.
Quick and easy installation (plug and configure the WiFi).
External power not required.
Simultaneous control of the AC unit by the manufacturer's IR remote controller and by AC Cloud Control through the app and web.

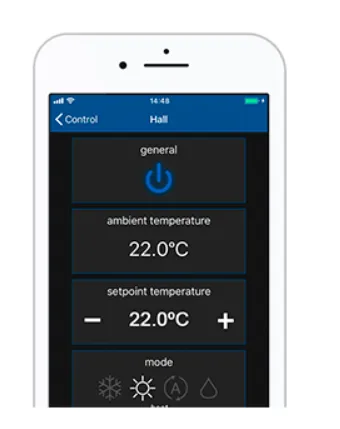

Native Android and iOS app.
Web based dashboard

Technical Details

Enclosure: ABS (UL 94 V-0). 2,5 mm thickness

Dimensions: 70 x 100 x 28 mm

Weight: 98 g

Colour: White

AC Connector: 12V, 85mA typical

Radio Parameters: RF Frequency range: 2412 to 2484 MHZ Output power (typical): 14/20 dBm

WIFI: 802.11 b/g/n (802.11n up to 150 Mbps)

Mounting: Wall

LED indicators: 1 x Device status

Operating Temperature: From 0oC to 40oC

Operating Humidity: <93% HR, no condensation

Stock Humidity: <93% HR, no condensation

RoHS Conformity: Compliant with RoHS directive (2011/65/CE).

Certifications: CE conformity to EMC directive (2014/53/EU) ¥ EN 62368-1:2014 ¥ CSA/UL 62368-1:2014 ¥ AS/NZS 62368.1:2018 ¥ EN 300 328 V2.1.1 ¥ EN 303 446-1 V1.2.0 ¥ Regulations: FCC/IC. Standards: Title 47 CFR Part 15B ICES-003 (Issue 6)
