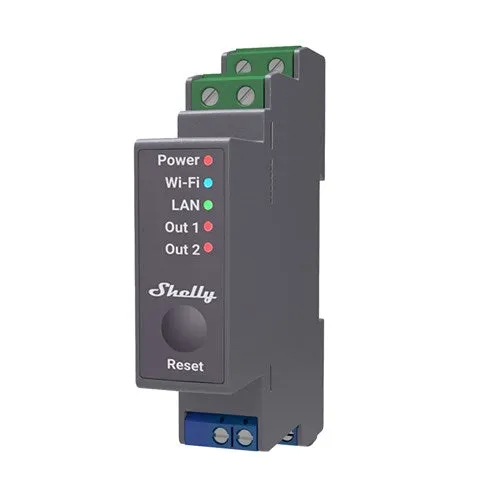

Shelly Pro 2
2-CHANNEL WI-FI RELAY SWITCH WITH DRY CONTACTS
professional 2-channel relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control and 2-phase control. DIN rail mountable inside a breaker box Enhanced safety features and compatibility with most platforms.
Features:
- LAN, Wi-Fi, and Bluetooth connections
- 2 outputs, 16A each. Total device maximum of 25A
- 2-phase control
- Dry contacts
- Overpower and overvoltage protection of the load

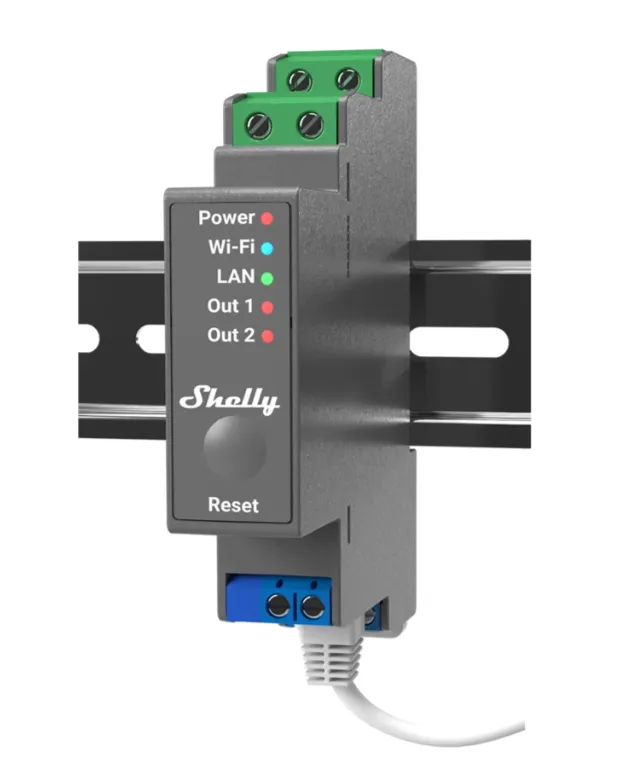

- DIN rail-mountable
Specifications:
| POWER | |
|---|---|
| Power supply AC | 110-240V, 50/60Hz |
| Maximum load | up to 16A per channel with up to 25A for the whole device |
| Channels | 2 Channel |
| SPECIAL FUNCTIONS | |
| Roller shutter mode | No |
| Device temperature protection | Yes |
| Overload protection | No |
| Power measurement | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Operational temperature | -20°C to 40 °C |
| Device power consumption | < 3 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Max RF output power | 13.35 dBm |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2483 MHz |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| Ethernet | Yes |
| DIMENSIONS | |
| Size | 18,5mm x89,5mm x 68,5mm |
