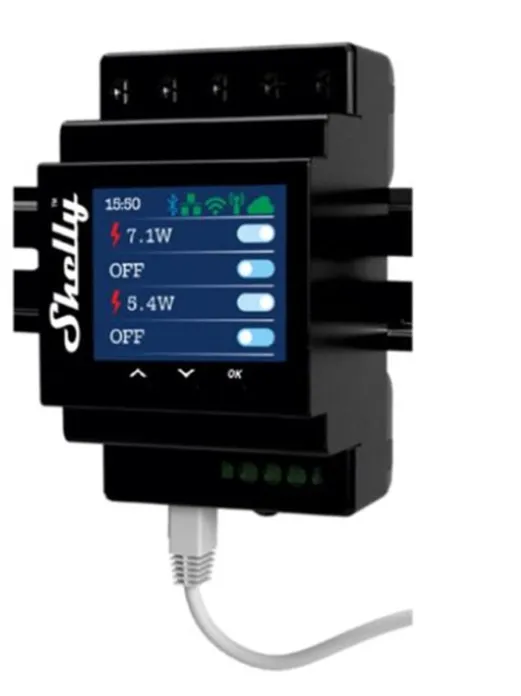

Shelly Pro 4PM has 4 channels DIN rail relay switch with Wi-Fi, LAN and Bluetooth connection
Professional Shelly Pro 4PM 4 channels relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control and precise power management. DIN rail mountable inside a breaker box. Enhanced safety features and compatibility with most used platforms.
Shelly Pro 4 PM
- LAN, Wi-Fi, and Bluetooth connection
- 4 outputs, 16A each. Total device maximum of 40A
- Precise power metering
- Overpower and overvoltage protection of the load.
- DIN rail mountable
- 1.8-inch color screen with navigation keys
| POWER | |
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Maximum load | up to 16A per channel with up to 40A for the whole device |
| Power supply DC | No |
| Channels | 4 Channel |
| SPECIAL FUNCTIONS | |
| Roller shutter mode | No |
| Device temperature protection | Yes |
| Overload protection | Yes |
| Power measurement | Yes |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Operational temperature | -20°C to 40 °C |
| Device power consumption | < 4 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| Ethernet | Yes |
| DIMENSIONS | |
| Size |
90mm x 52mm x 57mm |
