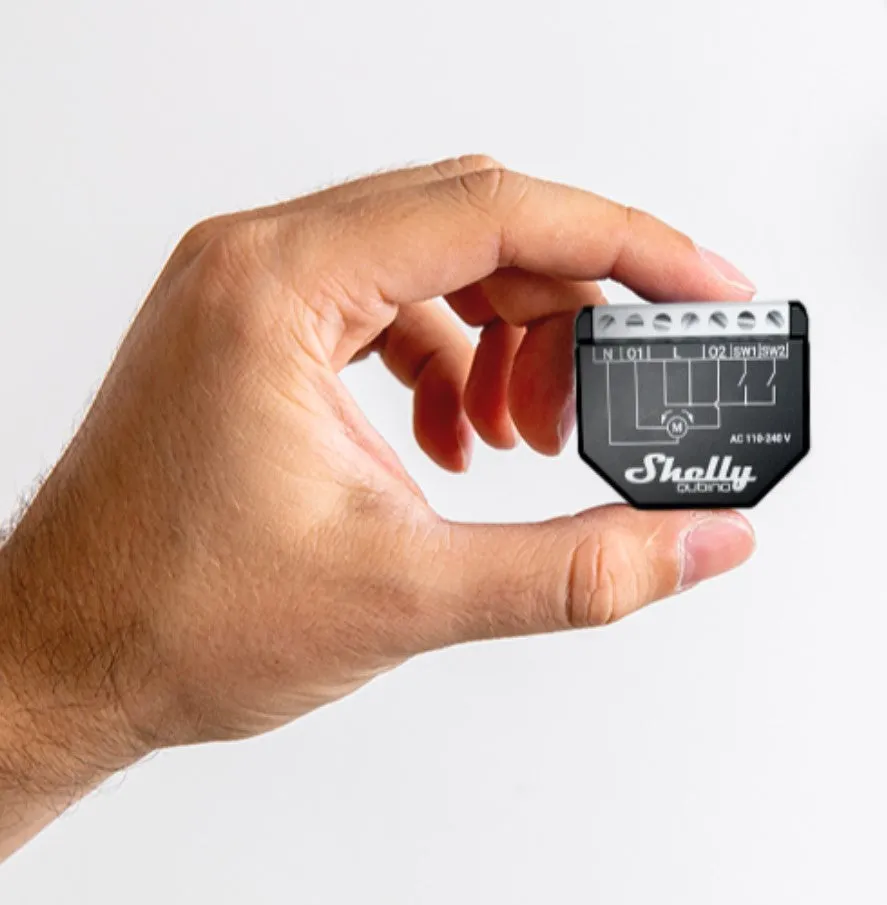

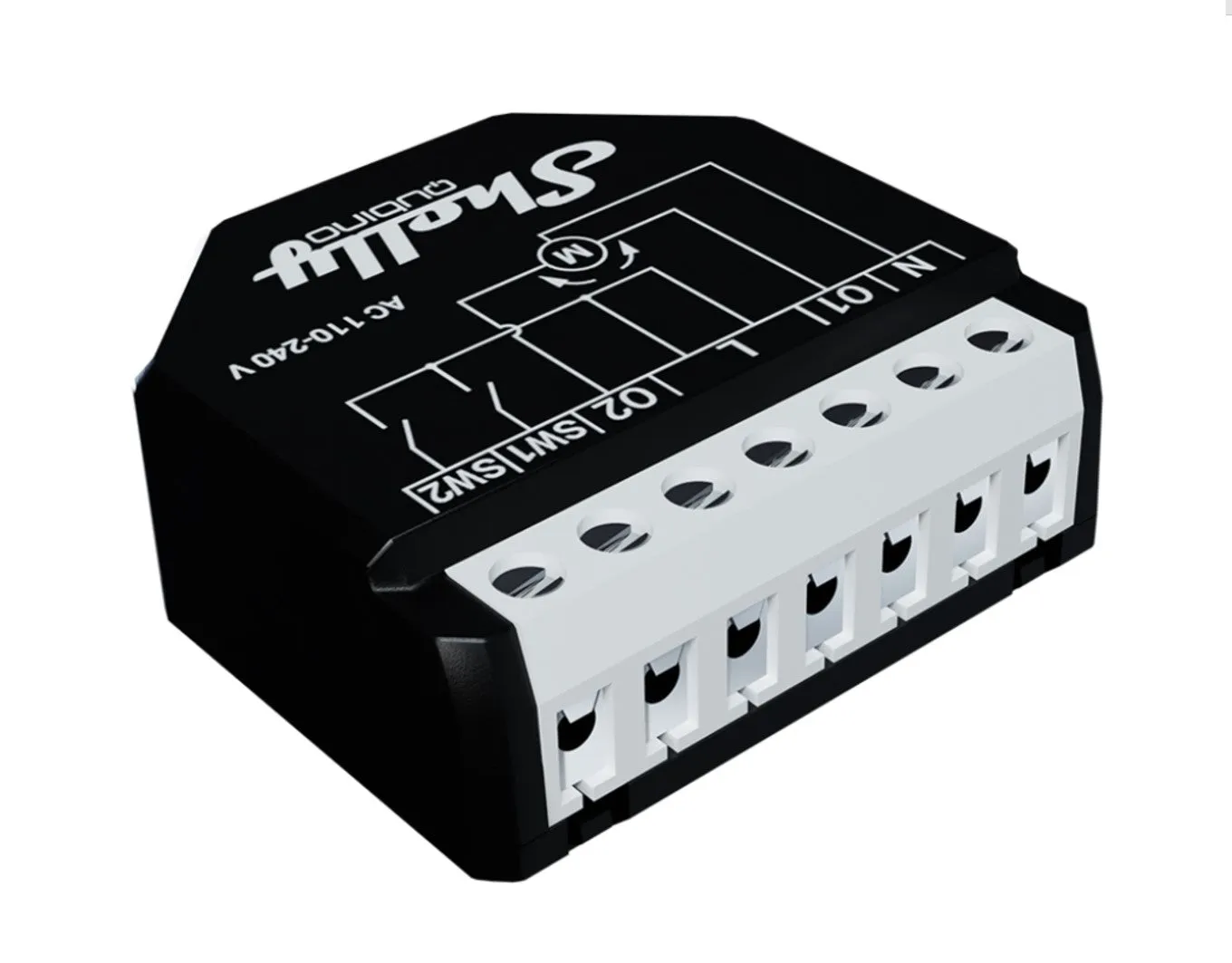

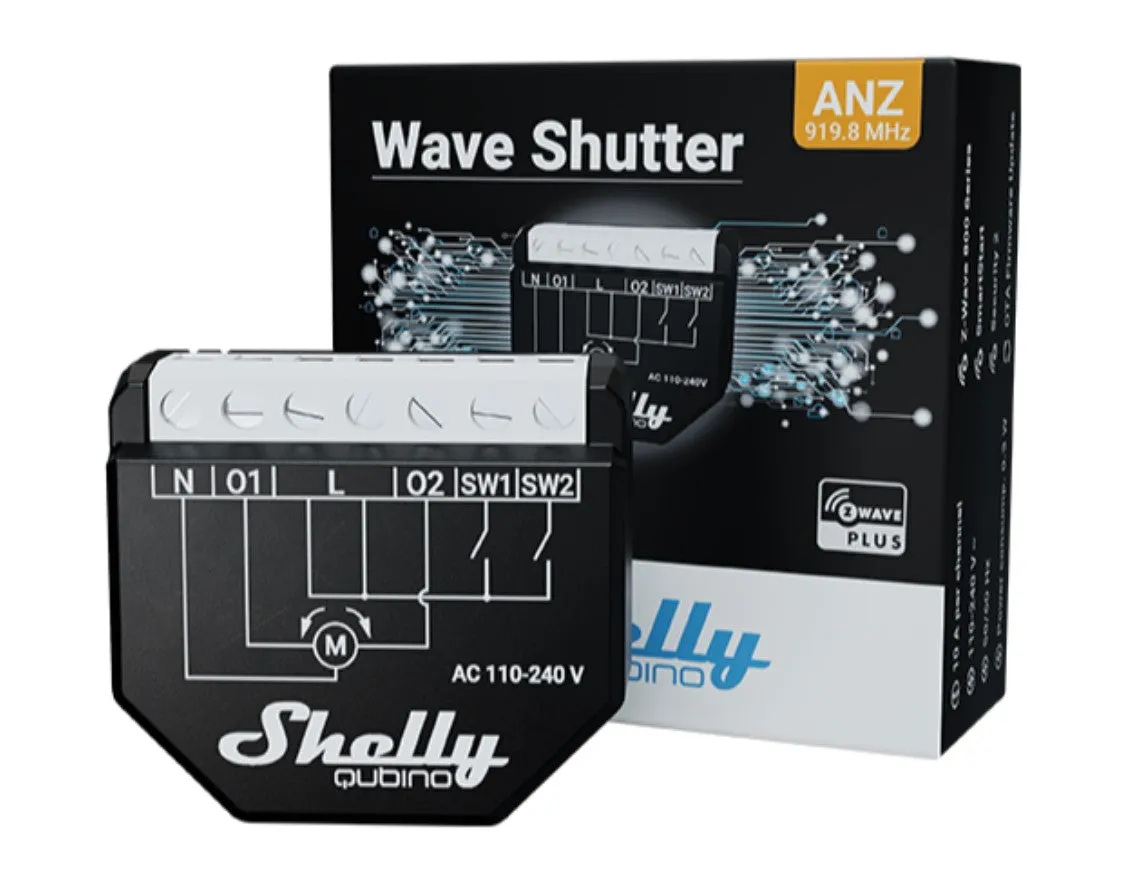

Name: Shelly Wave Shutter (Z-wave)
SKU: 25628

Introducing the Wave Shutter, a revolutionary Z-Wave® controller equipped with power measurement capabilities, offering precise control over roller shutters, blinds, windows, awnings, pool covers, and more. With a remarkable 10 A per channel capacity, this device empowers you to automate and remotely manage the position of various motor-powered devices with ease.

Key Features:

Control the tilt position (angle) of venetian blind slats for optimal light control
Integrated power metering functionality for accurate energy consumption monitoring
Ultra-low power consumption of less than 0.3 W
Operates on the Z-Wave 800 Series technology for enhanced reliability
Supports automatic setup with SmartStart and Security 2 Authentication for maximum security
Enables over-the-air firmware updates for continuous improvement
Compatible with Z-Wave-certified gateways and a wide range of Z-Wave devices

Installation and Compatibility: The Wave Shutter is designed for effortless retrofitting behind switches or push-buttons, instantly transforming them into smart devices. Once installed, simply integrate the device into your Z-Wave network via a compatible gateway, enabling seamless control of connected appliances from anywhere using your smartphone or tablet.

Functionalities:

Effortlessly include the Wave Shutter into your Z-Wave network for remote control compatibility with all certified Z-Wave gateways
Precisely set the desired position of blinds, roller shutters, screens, awnings, and more powered by bi-directional AC motors
Adjust the tilt position (angle) of venetian blind slats to regulate the amount of natural light entering a room
Establish direct communication between devices in your Z-Wave local network and configure custom actions without the need for a hub
Create personalized schedules aligned with your daily routine or synchronized with sunrise/sunset for automated operation (gateway required)
Design custom scenes by combining the Wave Shutter with other Z-Wave devices to enhance convenience and efficiency (gateway required)

Use Cases:

Optimize your daily routines by programming Wave Shutter to open and close curtains at specific times, creating an ideal ambiance for starting and ending your day
Enhance comfort while working from home by adjusting the position of venetian blinds and controlling the angle of blind slats to regulate natural light levels without interrupting your workflow
Boost home security by integrating Wave Shutter with other devices to establish automated "Vacation Scenes" that simulate occupancy, deterring potential intruders while you're away
Ensure the safety of your home by creating associations between Wave Shutter and Z-Wave weather sensors, enabling automatic adjustment of awnings in response to adverse weather conditions

Experience the unparalleled convenience, efficiency, and versatility of the Wave Shutter Z-Wave controller, designed to elevate your smart home experience and meet your unique needs effortlessly.

Specifications

Power supply	110–240 V AC ±10%
Power consumption	< 0.3 W
Power measurement [W]	Yes
Max switching voltage AC	240 V
Max switching current AC	10 A per channel
Overheating protection	Yes
Overcurrent protection	Yes
Distance	up to 40 m indoors (131 ft.)(depends on local condition)
Z-Wave repeater:	Yes
CPU	Z-Wave S800
Z-Wave frequencies band(s)	919,8 MHz (Australia & New Zealand)
Maximum radio frequency power transmitted in frequency bend(s)	< 25 mW
Size (H x W x D)	37 mm x 42 mm x 16 mm ± 0.5 mm / 1.46 in x 1.65 in x 0.63 in ± 0.02 in
Weight	29 g / 1.02 oz.
Mounting	Wall console
Screw terminals max torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.5 to 1.5 mm? / 20 to 16 AWG
Conductor stripped length	5 to 6 mm / 0.20 to 0.24 in
Shell material	Plastic
Color	Black
Ambient temperature	-20°C to 40°C / -5°F to 105°F
Humidity	30% to 70% RH
Max. altitude	2000 m / 6562 ft.
